Large-Sized Double-Track Gantry Concrete Cutting Line

Large-Sized Double-Track Gantry Concrete Cutting Line
  • Large-Sized Double-Track Gantry Concrete Cutting Line
  • Large-Sized Double-Track Gantry Concrete Cutting Line
  • Large-Sized Double-Track Gantry Concrete Cutting Line
  • Large-Sized Double-Track Gantry Concrete Cutting Line

    • Large-Sized Double-Track Gantry Concrete Cutting Line

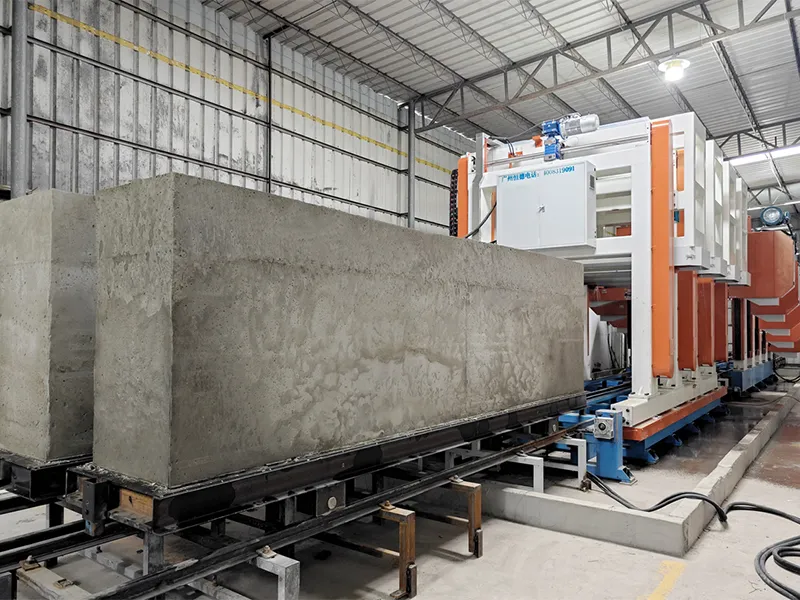

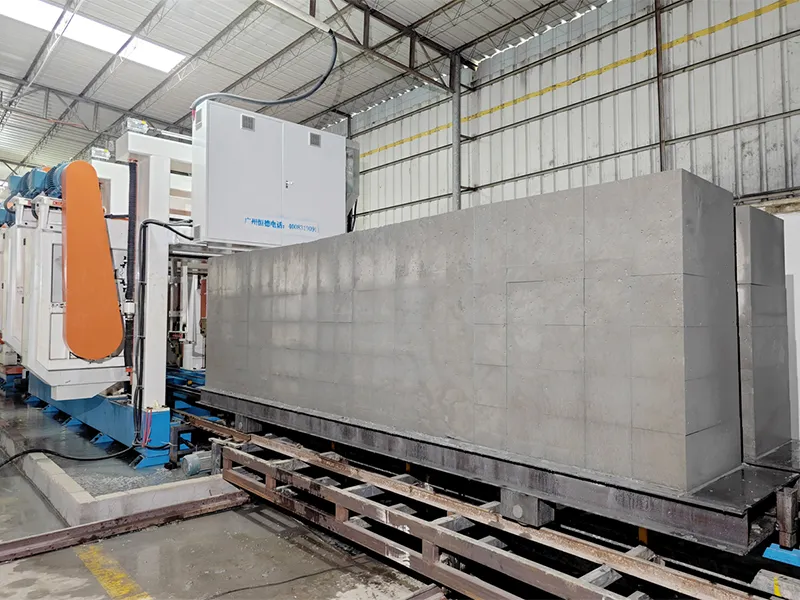

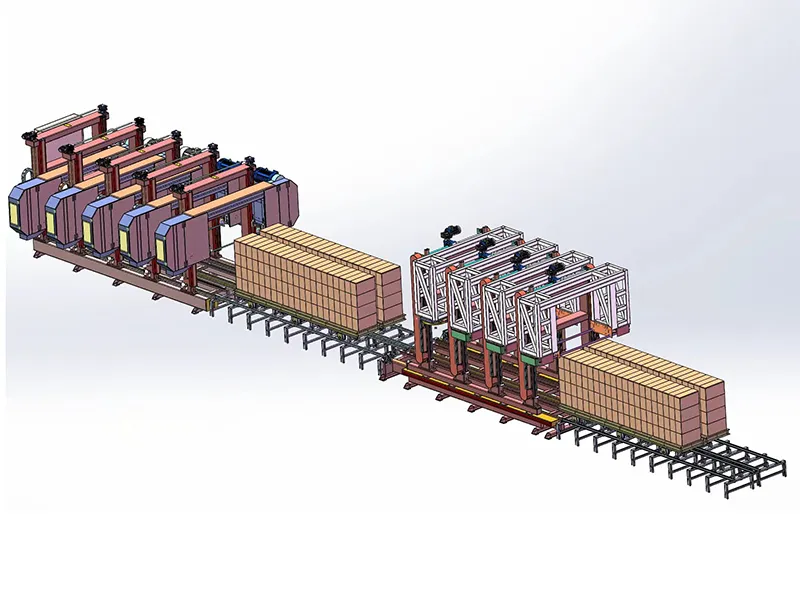

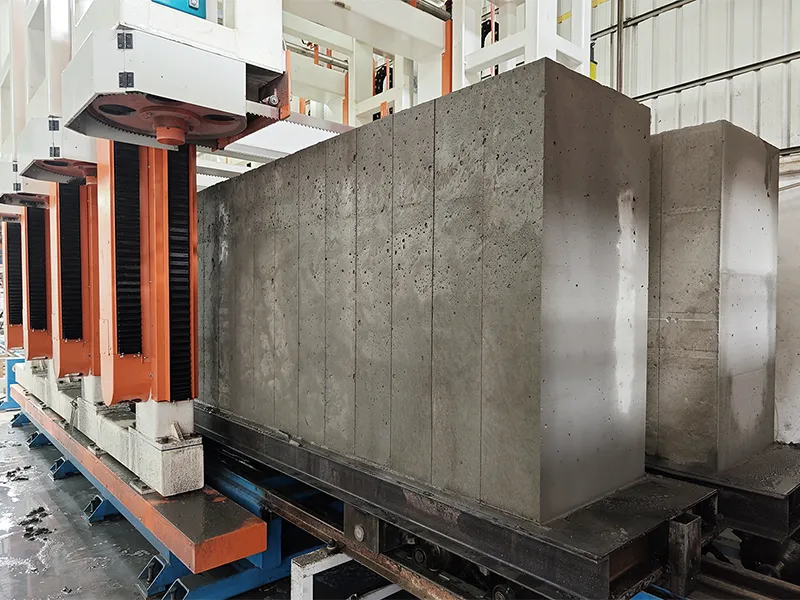

    The large-sized double-track gantry concrete cutting line is designed for cutting AAC concrete blocks with moulds of the same size. It can cut two rectangular concrete cakes with dimensions of 4.2m x 1.2m x 0.6m or two rectangular concrete cakes with dimensions of 6.0m x 1.2m x 0.6m in a single operation. This system consists of a four-head double-track gantry vertical concrete cutter and a five-head double-track gantry horizontal concrete cutter, achieving a single cutting volume of 6-8m³.

    Request a Quote

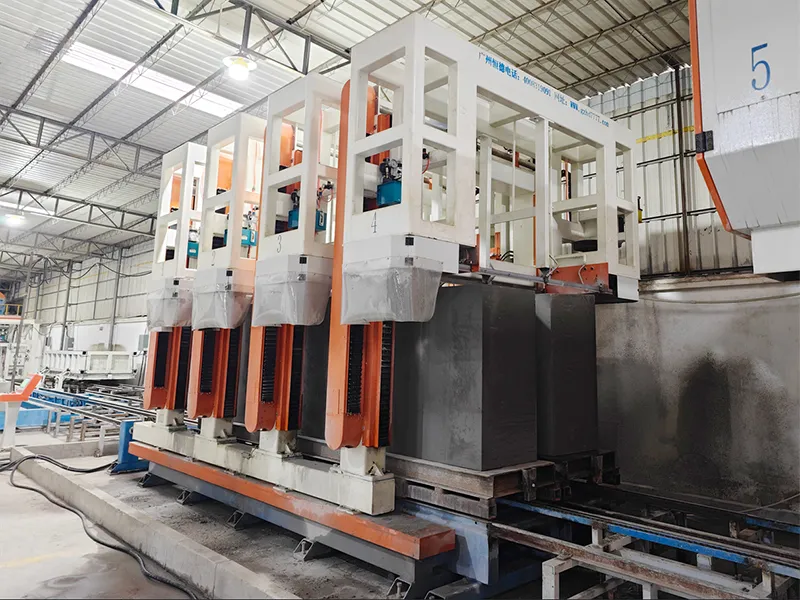

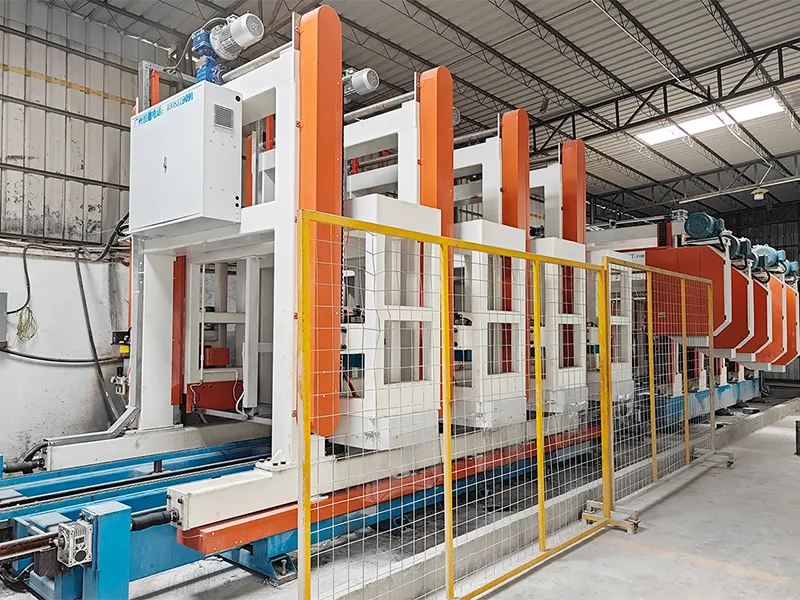

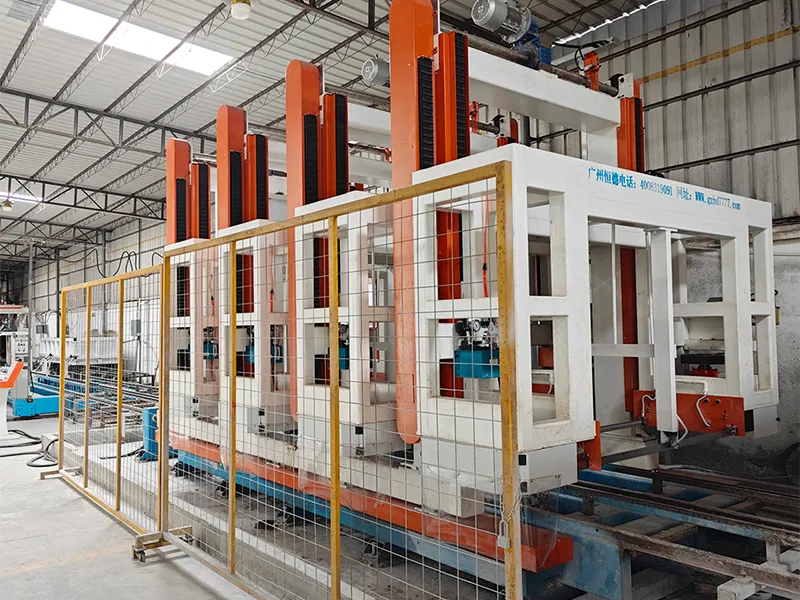

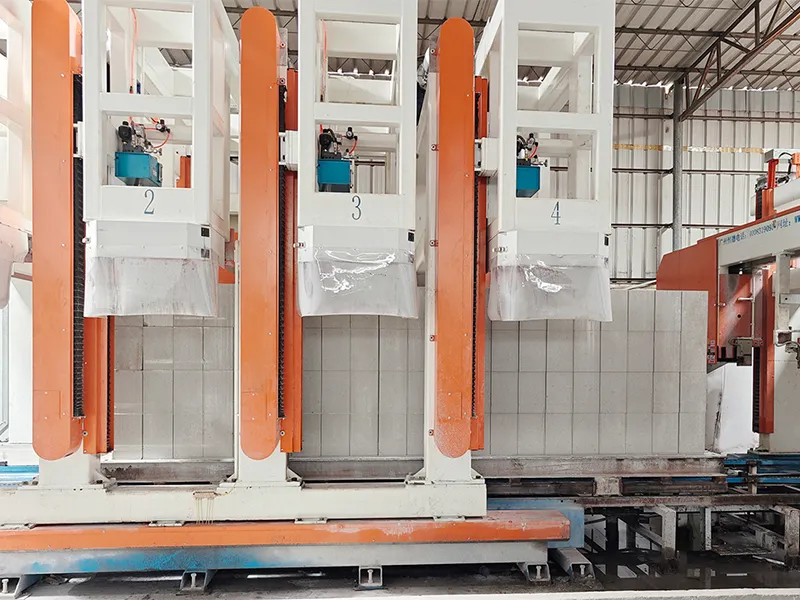

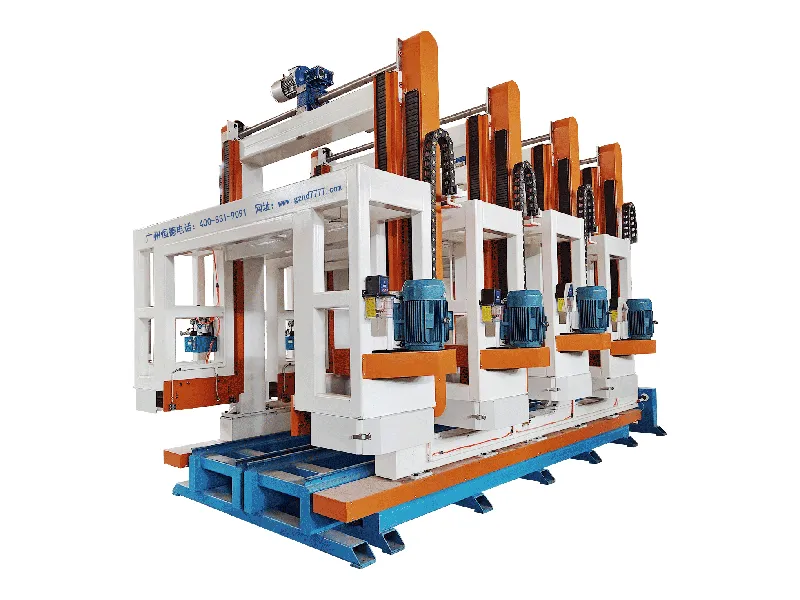

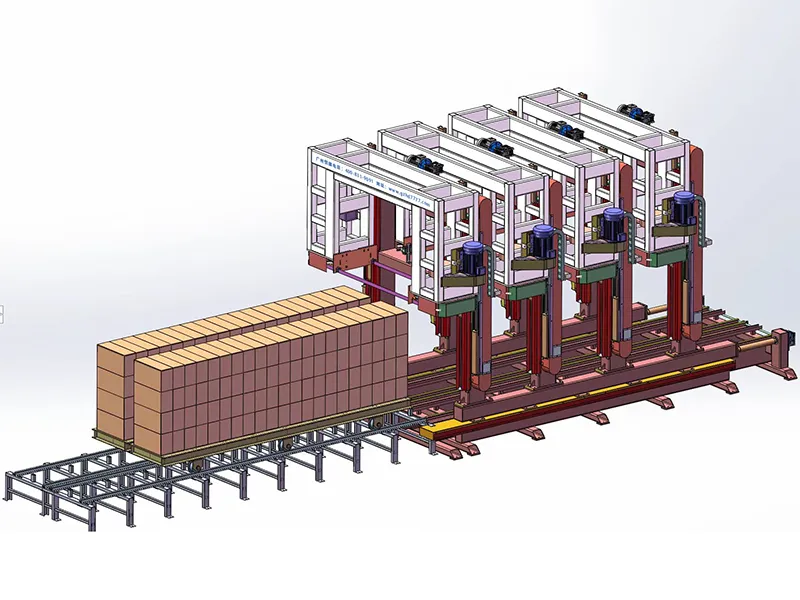

    Four-Head Double-Track Gantry Vertical Concrete Cutter
    Four-Head Double-Track Gantry Vertical Concrete Cutter
  • Four-Head Double-Track Gantry Vertical Concrete Cutter
  • Four-Head Double-Track Gantry Vertical Concrete Cutter
  • Four-Head Double-Track Gantry Vertical Concrete Cutter
  • Four-Head Double-Track Gantry Vertical Concrete Cutter
  • Four-Head Double-Track Gantry Vertical Concrete Cutter

    • Specifications

    • Model: HDSMSQ-001
    • Dimensions: 6000×3350×3250mm
    • Power: 37.8kW
    • Flywheel diameter: 600mm
    • Cutting speed: 0-40m³/h
    • Cutting width: 100mm, 120mm, 150mm, 200mm, 300mm

    Advantages

    • High capacity: capable of processing large volumes.
    • Fully numerically controlled: ensures precise and automated operations throughout the process.
    • Fast processing speed: increases overall efficiency.
    • Accurate dimensions: maintains precise cutting dimensions with minimal error.
    • Low waste: reduces material wastage during the cutting process.
    • Durable and easy to maintain: built to last and requires minimal maintenance.

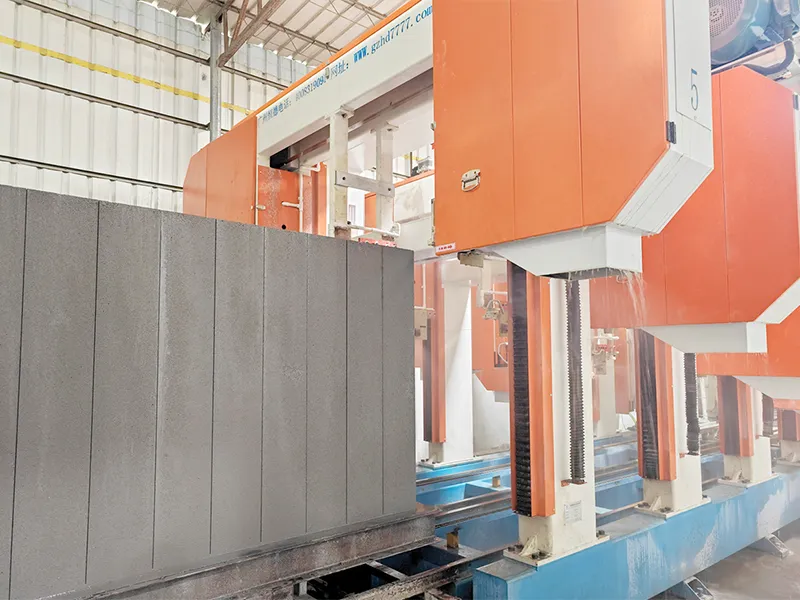

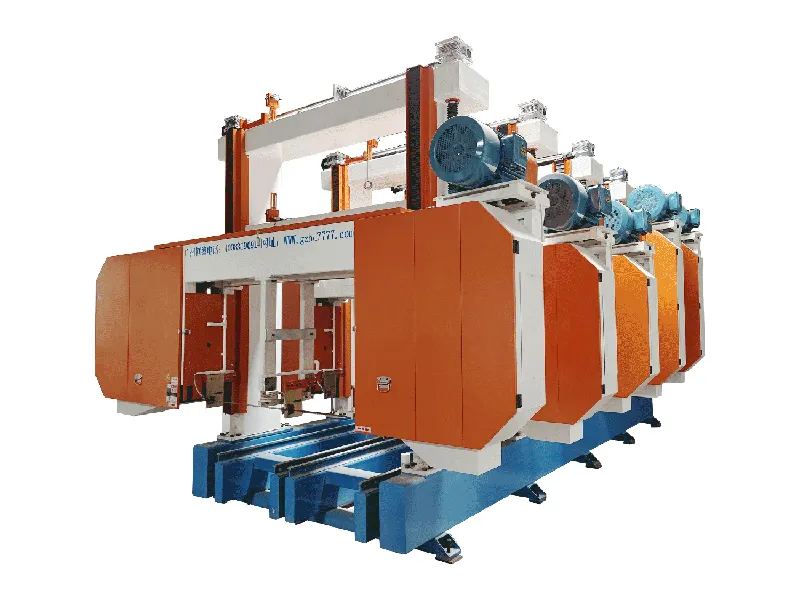

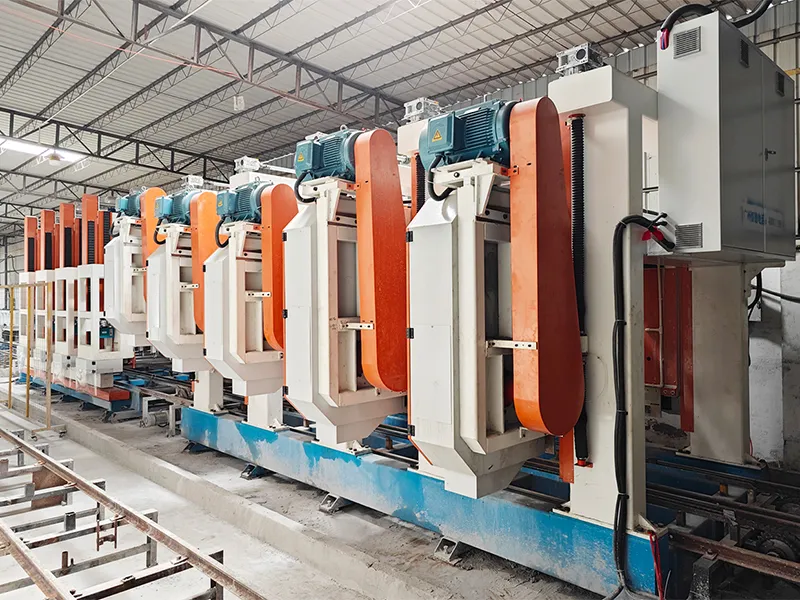

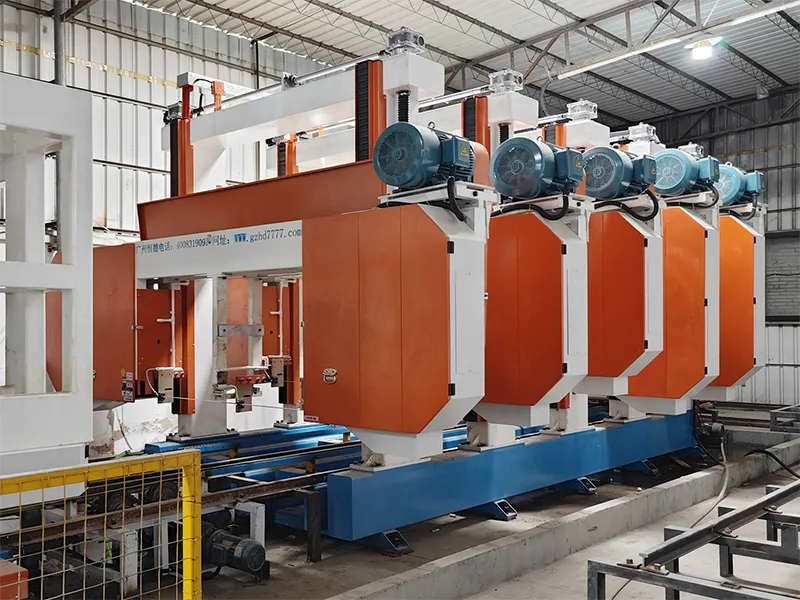

    Five-Head Double-Track Gantry Horizontal Concrete Cutter
    Five-Head Double-Track Gantry Horizontal Concrete Cutter
  • Five-Head Double-Track Gantry Horizontal Concrete Cutter
  • Five-Head Double-Track Gantry Horizontal Concrete Cutter
  • Five-Head Double-Track Gantry Horizontal Concrete Cutter
  • Five-Head Double-Track Gantry Horizontal Concrete Cutter
  • Five-Head Double-Track Gantry Horizontal Concrete Cutter

    • Specifications

    • Model: HDSMPQ-002
    • Dimensions: 6000×4200×2900mm
    • Power: 88.0kW
    • Flywheel diameter: 900mm
    • Cutting speed: 30-40m³/h
    • Cutting height: 100mm, 150mm, 200mm, 300mm, 350mm (or customizable)

    Features

    • Easy size adjustment: fully PLC-controlled, input the required cutting dimensions (any size within 600mm), and the cutting task is completed automatically, making factory management easier.
    • Precise and beautiful dimensions: cutting size error is less than 1mm. The entire cutting process is controlled online by a computer (the concrete cake does not leave the bottom plate), ensuring high precision and a smooth, aesthetically pleasing surface.
    • Labor-saving: one person can complete the cutting process.
    • Easy saw blade replacement: saw blades can be changed in 1-2 minutes.
    • Low cutting loss costs: the saw head cuts vertically downwards without negative pressure, reducing friction on the saw blade, making it more durable and saving production costs.
    • Excellent performance: capable of cutting semi-dry and semi-wet concrete cakes (0.5-2MPA) as well as hardened concrete cakes (3.5-5MPA), delivering consistent and precise results across different material conditions.
    • Multi-functional: it can cut non-autoclaved aerated concrete (NAAC) blocks, EPS concrete blocks, and lightweight aggregate blocks and wall panels such as ceramist or perlite blocks.
    Machines in the Concrete Block Production Lines
    Our Solutions for Customers' Concrete Projects

    Our company has successfully completed over 100 projects worldwide, showcasing our expertise in producing concrete blocks, CLC aerated blocks, wall panels, and insulation panels. Our case studies highlight successful implementations and innovative raw material solutions for a variety of clients.

    Why Us
    • Extensive project experience: our company has undertaken over a hundred construction projects both domestically and internationally.
    • Leading technological advantage: we established technical collaborations with German LUCA, German KENA, British CDS, and British TAMCK.
    • Comprehensive solutions: We integrate research and development, design, production, and sales to offer turnkey solutions.
    • Largest wall panel cutting system: We have developed the world's largest wall panel cutting system, capable of cutting 6-8 cubic meters in a single operation.
